    Brushless Motor 0.5s Speed Gate Turnstile Face Recognition For Subways

    Ask Lasest Price
    Brand Name : Hongchuangwei
    Model Number : CW422
    Certification : CE UL
    Price : USD 769-839 per piece
    Payment Terms : T/T
    Supply Ability : 1000 pieces weekly
    Delivery Time : 6-10 working days
    • Product Details
    • Company Profile

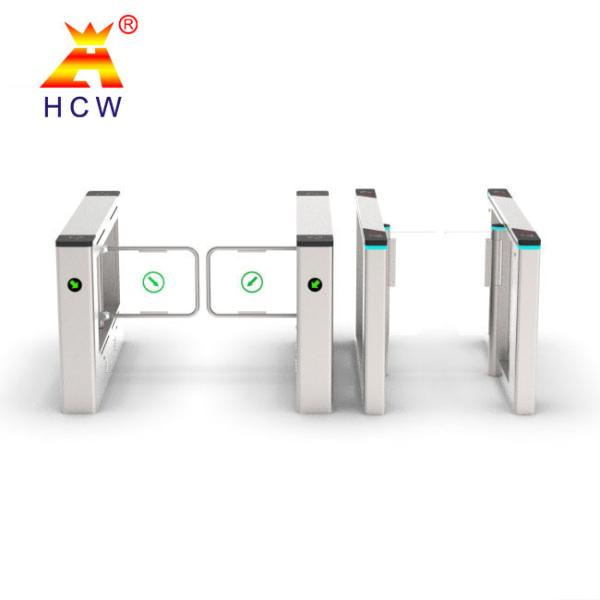

    Brushless Motor 0.5s Speed Gate Turnstile Face Recognition For Subways


    Face Recognition Access Control System High-Speed Turnstiles Gate with Brushless Motor for subways CBD building school


    FEATURES AND BENEFITS

    l Use of RFID IC cards,ID cards,Barcode or magnetic cards as automatic identification system and achieve access attendance,fees or function.

    l A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

    l Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

    l Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will automatically rotate forward by motor power until the arm arrives in home position.

    l Pure mechanical mode:The passenger pushes the arm by hand until he goes through the barriers.

    l Single or bi-directional function in mechanical and electrical versions.

    l Automatic reset of barrier arms after each passage.

    l Cable or wireless remote control panel key override control for emergency situations.Automatically arm drop down when power off or emergency.

    l Adjustable time out delay.


    This is a Fast anti-collision swing turnstile with STC CPU chip brushless motor 6 pairs of infrared detection sensors, long-life and high stability,
    high efficiency and anti-tailing, support various IC/ID card readers, barcode readers,ID card reader, easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens, School , hotel etc.

    • Only authorized personnel can pass,and when unauthorized personnel break in, it will emit sound and light buzzer alarm
    • Flexible selection of open and closed modes,two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
    • Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
    • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time (additional horn is required)
    • Anti-shock function, the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal. When the swing arm is hit, the swing arm will automatically open to the set angle. The electromagnetic lock will automatically lock, with a maximum impact of 120Nm.
    • With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, anti-tailing buzzer alarm (additional horn required)
    • Remote control management function
    • Can be run online or offline
    • LED traffic direction indication, display traffic status
    • When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic

    Technical parameter
    Product modelCW422
    Power supplyAC220V±10%,50HZ±10% HZ
    Working environment-25℃-70℃
    Relative humidity≤90%
    Motorbrushless motor
    Motor power40W
    Communication interfaceswitch value.RS232
    Number of passers30~40/min
    Infrared quantity8pairs
    Working life2 million times
    Normal service life3 million times
    Channel width size600mm~900mm
    Swing material10mm Plexiglass
    Product sizeL 1600mm x W 120mm x H 965 mm
    Chassis materialNational standard 1.2~1.5mm 304 stainless steel
    Packing weightAbout 70 KG(single channel)
    Application environmentIndoor or canopy
    Configuration instructionsWithout voice and battery



    FAQ
    1.Can you accept OEM or ODM ?
    Yes, We provide customized services according to your detailed requirements, also can design unique gate
    according to your actual site, and produce different sizes, software and functions.
    2. How do you do after-sales service?
    We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,
    One-year warranty and lifetime technical support.
    3. How about the delivery time?
    It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.
    4.What is your payment method?
    T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the
    products and packages.
