    Revolving Single Door Full Height Turnstile 100W Electronic Barrier Gate For School

    Ask Lasest Price
    Brand Name : Hongchuangwei
    Model Number : CW801
    Certification : CE
    Price : USD 1200-2299 per piece
    Payment Terms : T/T
    Supply Ability : 1000 pieces weekly
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

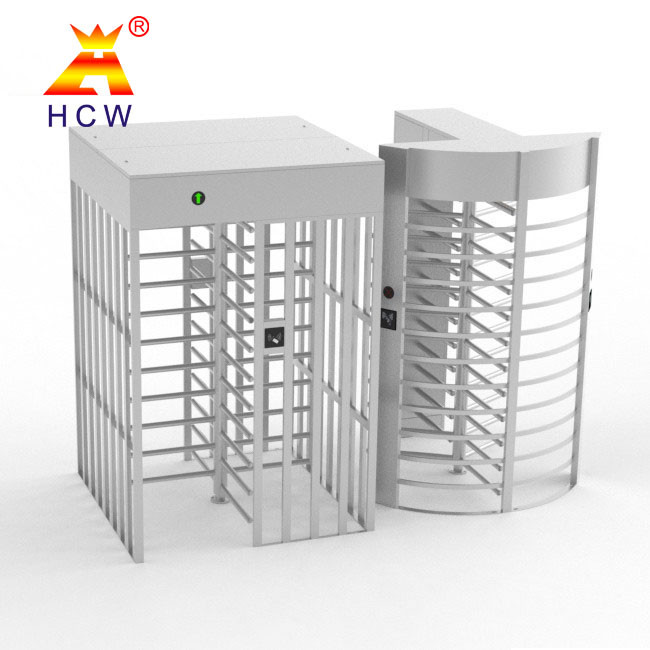

    Revolving Single Door Full Height Turnstile 100W Electronic Barrier Gate For School

    2 Door Access Control Full Height Turnstile

    Introduction:

    The full high turnstile is designed to provide unsupervised access control for office or building.

    The impenetrable construction eliminates any unauthorized access to restricted areas.

    To gain authorized passage through the turnstile, the user must present a valid card for the access control system.

    Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested.

    The turnstile can also work with push button, fingerprint and face recognition access control system.


    Function:

    (1) Running stably without noise and mechanical impact.

    (2) The passing person number of the persons can be set.

    (3) Several ways of working molds for your demand chosen.

    (4) Bidirection, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.

    (5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.

    (6) Direction-guide lights in the turnstile to tell you whether the direction to go or not.

    (7) The standard electrical interface connected with various kinds of reader and writer equipment.
    (8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance.
    (9) The number of the persons passed by can be counted automatically which can also be displayed in LED

    (10) Beam can be lifted and fall when power is cut-off.

    (11) The function with or without card-reading memory cab be set according to your demand.

    (12) Self-check and alarm for convenienting to operate.


    Specification:


    1.Power supply voltage: AC220+10% 50HZ
    2.Power consumption: static power consumption <50W, dynamic power consumption <100W
    3.Rotation direction: one-way or two-way
    4.Communication interface: switch value, optional RS232/RS485
    5.pass direction: one-way or two-way pass
    6.Product components: 1 set of standard case, 1 set of 120-degree revolving door, 1 set of panel barriers, 1 set of arc barriers, 1 set of control panels, 1 set of movement
    7.The fence length:600mm, and the door leaf is made up of 120 degrees of the fence
    8.Swing arm length outside the chassis:≤430mm
    9.Opening time: not adjustable
    10.Number of passers:20 people/minute
    11.working environment:-25℃ to 70℃
    12.Relative humidity,≤90% no condensation
    13.Automatic reset function: After opening the gate, the system will be automatically locked if it is not passed within the specified time, and the travel limit time is adjustable
    14.Chassis material: standard 304 stainless steel. thickness:
    15.The appearance of the chassis can be customized according to requirements


    Model
    CW801
    Size
    1500*1500*2300 mm
    Material
    1.2 mm +1.0mm 304 SUS Hairline #400
    Pass Width
    600mm
    Passage Direction
    Single directional/Bi-directional
    Pass Rate
    30-35 persons/minute
    Operating Time
    0.2 seconds
    Power Input
    AC100-240V,50/60HZ
    Working Voltage
    24V
    Working Environment
    Indoors and out doors
    Application
    Construction Site,Factories,Toilets,Library,etc;
    Communication Interface
    Dry contact
    Mechanism
    Brushed DC Motor
    MCBF
    3,000,000 Cycles
