    304 Stainless Steel Face Recognition Turnstile 50cm Lane Width

    Ask Lasest Price
    Brand Name : Hongchuangwei
    Model Number : CW423
    Certification : CE
    Price : USD280~480 per piece
    Payment Terms : T/T
    Supply Ability : 100 pieces per day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

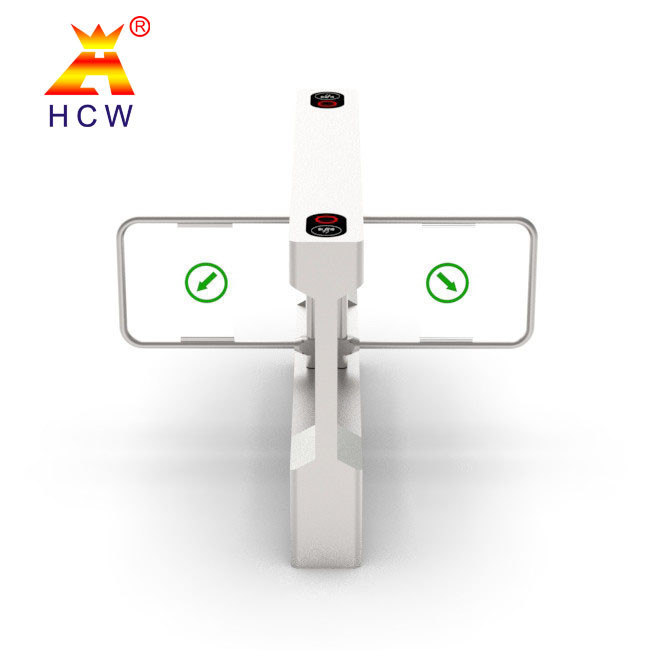

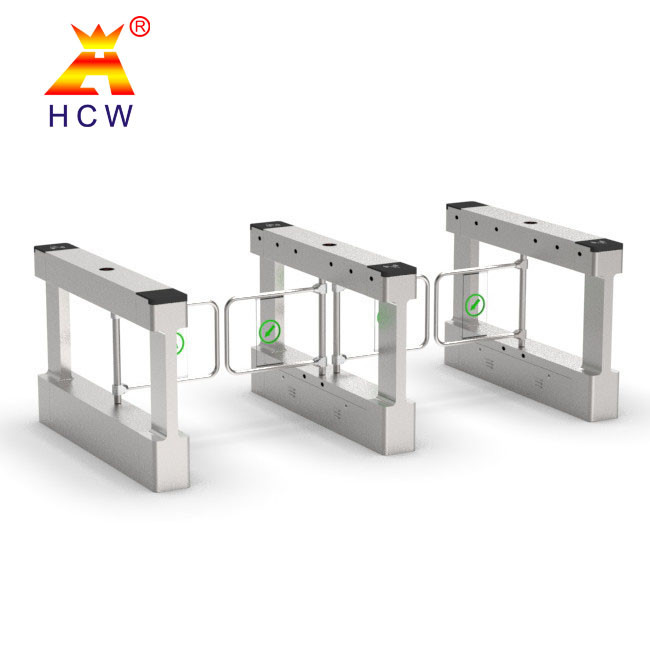

    304 Stainless Steel Face Recognition Turnstile 50cm Lane Width

    Hongpai face recognition turnstile waterproof outdoor CW423


    Functions and features:

    ◊ Smart card reader compatible with a variety of card such as IC and ID card.

    ◊ can be expanded to automatic identification system, realizing function of access control,

    Pedestrian flow control, attendance check or fare collection.

    ◊ Equipped with international standard electrical interface, can be easily integrated with other

    R/W device, also can be controlled and management through remote supervision computer

    ◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating

    Attempts, together with anti-strike function to protect pedestrian

    ◊ LED gate direction indicator that displays the current operational state to pedestrian. Green

    Arrow for entry free, Red Cross for passage locked.


    On-site installation and commissioning of equipment
    6.1 On-site installation of equipment
    1) Count the accessories according to the packing list
    2) Determine the installation location of each gate according to the specific system composition, use site and the selected model.
    3) As shown in the installation requirements as shown in the figure below, determine the installation hole position, and pre-process 4 M12 anchor bolts or 4 M12 expansion bolts at the installation position.

    4) Put the 3/4" PVC pipes of the strong cables and weak current cables respectively through them, and bury them in the corresponding positions with cement.


    Indicator
    Green means passage
    Power supply for core
    AC100~220V 50/60Hz
    Operational voltage
    DC 24V ±5%
    Voltage of indicator
    DC12V ±5%(standard)
    Power consumption
    30W
    Working environment
    Indoors or outdoors(outdoor is optional)

    304 Stainless Steel Face Recognition Turnstile 50cm Lane Width304 Stainless Steel Face Recognition Turnstile 50cm Lane Width
