    Entrance / Exit Swing Turnstile Gate Fully Automatic Bridge Type Two Way

    Ask Lasest Price
    Brand Name : Hongchuangwei
    Model Number : CW401
    Certification : CE UL
    Price : USD330 per piece
    Payment Terms : T/T
    Supply Ability : 1000 pieces weekly
    Delivery Time : 4-7 working days
    • Product Details
    • Company Profile

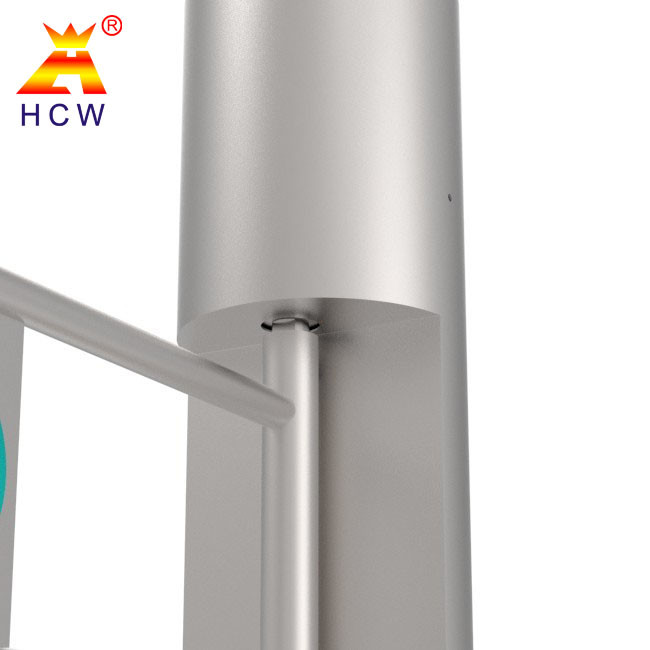

    Entrance / Exit Swing Turnstile Gate Fully Automatic Bridge Type Two Way

    Fully automatic bridge type two-way swing turnstile gate at entrance and exit


    Thickened steel, support customization, quality assurance, durable, waterproof and rustproof
    Support face recognition, fingerprint recognition, scan code recognition, document recognition
    Anti-collision function, when there is no signal to open the brake, the swing arm is automatically locked
    Fault prompt, fault self-check is convenient for users to use and maintain
    Brushless motor for longer life
    One-way two-way traffic can be set according to the use site
    Can be used for smart community system solutions
    Option 1: Face recognition, improve security and prevent identity impersonation
    Face collection, face detection, feature extraction, and feature comparison


    1. It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use;
    2. It has automatic opening after power failure, self-checking when incoming calls and automatic recovery in locked state
    3. There are a variety of working modes to choose from, you can read the card in two directions, or you can read the card while the other direction is prohibited, while reading the card and pass freely in the other direction, or one-way or two-way infrared induction, pedestrians can pass. After passing through, the infrared sensor closes the gate, and the working mode of the gate can be set through the main board menu.
    4. After the pedestrian reads the valid card, the infrared detection will automatically close the gate or delay the gate after the pedestrian passes. The delay of 1-60 seconds can be set by the main board menu.
    5. With automatic reset function. After the valid card is read, if the passer does not pass within the specified time, the system will automatically cancel the passer's current pass authority, and the limited pass time can be set by the administrator.
    6. If a pedestrian forgets to read the card or reads an invalid card and enters the passage, the system will prohibit the pedestrian from passing and will issue an alarm, and the alarm will not be released until the pedestrian exits the passage; the valid card will be re-read to allow passage;
    7. It has 485 remote control opening and closing functions to meet the special needs of users and fire safety requirements.
    8. Anti-shock function, the telescopic arm automatically locks when no signal to open the gate is received;
    9. Infrared/mechanical dual anti-pinch function, when pedestrians pass, infrared detection of pedestrians in the middle, the telescopic arm will not close the gate, the telescopic arm will automatically close after the pedestrian walks away, when the telescopic arm is blocked in the process of resetting, Automatic rebound or the motor automatically stops working within a specified time, and the force is very small, and an audible and visual alarm signal is issued at the same time;
    10. It has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can realize remote control and management through the management computer.
    11. It can automatically count the number of people passing in the direction of travel, and present it to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing in a certain direction.
    12. It has a clear function of indicating the direction of passage, with intuitive LED passersby indicating whether it is possible to pass or not to pass.
    13. It has the function of reading card with memory and without memory, and users can set it through the motherboard keyboard according to their own needs.
    14. Through software settings, the total number of personnel in the venue can be limited to meet the special needs of some special occasions.
    15. The whole system runs smoothly and has low noise;


    Technical parameter
    Product ModelCW401
    VoltageAC220V±10%,50HZ±10% HZ
    Working temperature-25℃-70℃
    Relative humidity≤90% No condensation
    MotorBrushless Motor
    Rated power40W
    Input control signalSwitch value (standard configuration does not include RS232, RS485)
    Running speed30~40 Person/minute
    Infrared beam1 Pair
    Number of trouble-free runs2 million times
    Average life span3 million times
    Channel width600mm~1600mm
    Door wing material¢25mm Stainless steel
    Product Size¢168mm x 600height 1050 mm
    Channel frameNational standard 1.5mm 304 stainless steel
    Package weightAbout 25 KG (single side road)
