    240V Bridge Type Tripod Turnstile Gate 304 Stainless Steel For Train Station

    Ask Lasest Price
    Brand Name : Hongtai Well
    Model Number : CW308
    Certification : CE
    Price : USD200~240 per piece
    Payment Terms : T/T
    Supply Ability : 100 pieces per day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

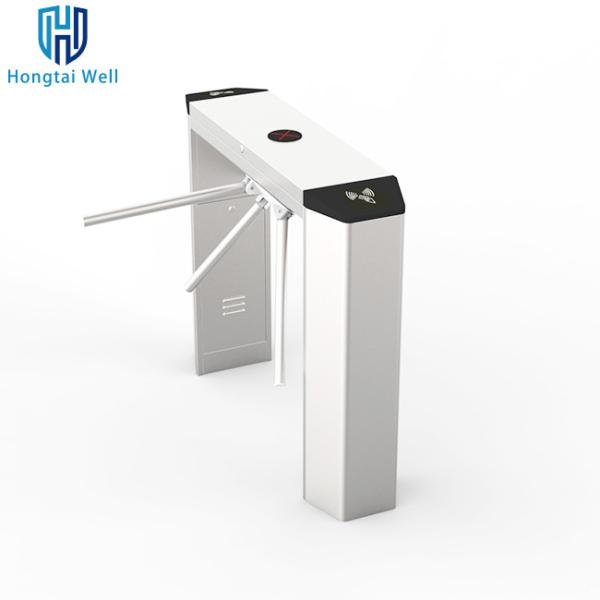

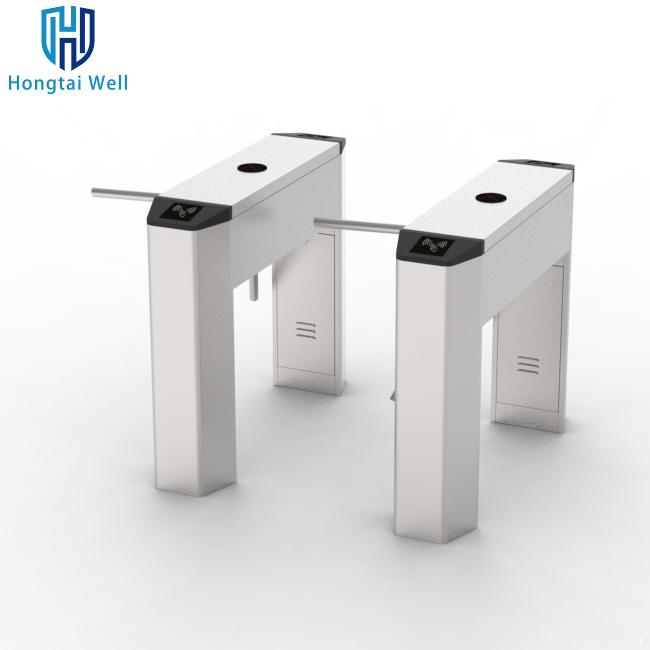

    240V Bridge Type Tripod Turnstile Gate 304 Stainless Steel For Train Station

    Cost effective Hhalf height bridge type access control tripod turnstile gate

    The intelligent bridge tripod turnstile gate is a semi-automatic pedestrian gate.The box frame of this product is a bridge structure with three rotatable booms.The boom and box are made of 304 stainless steel, which can be configured to allow one-way or two-way traffic according to project requirements. The gate control board chip adopts STC CPU, which has the characteristics of long life and high stability, and high efficiency and anti-tailing. The boom is equipped with a solenoid valve that can make the boom automatically drop when the equipment is powered off, meeting the needs of fire escape.This product can be connected to various access control systems,and supports various IC/ID card readers, barcode readers, ID card readers, face recognition, etc.When checking tickets in stadiums, amusement parks, and school facilities,the use of three roller gates is a popular option.They eliminate the need for attendants at the entrance and provide a way to count the number of pedestrians entering the facility. This revolving door with card reader and electronic operating system is also the most popular choice for subway systems, and can be found in most subway systems. In addition,it is also widely used in CBD business centers, government and enterprise office buildings, and high-end residential areas. , Kindergarten, etc. entrance and exit control.


    Product model parameters:

    Technical parameters:
    Product modelCW308
    VoltageAC220V±10%,50HZ±10% HZ
    Working temperature-25℃-70℃
    Relative humidity5%--90%
    Input control signalSwitch value
    Running speed

    20~30 people/minute.


    Opening and closing timeNot adjustable
    Number of trouble-free runs2 million times
    Average life span3 million times
    Channel width550mm
    Boom materialStainless steel round tube
    Product SizeL 1200mm x W 280mm x H 990mm
    Channel frame1.0mm 304D stainless steel
    Package weightAbout 45KG (single side)
