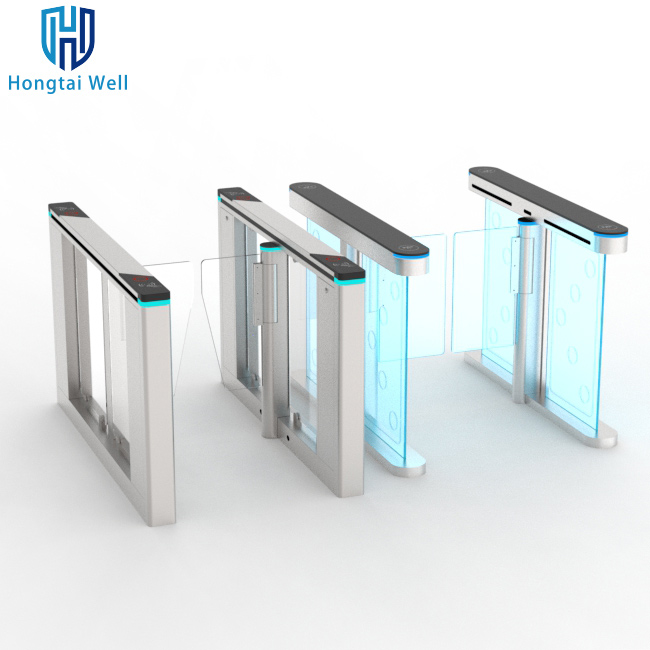

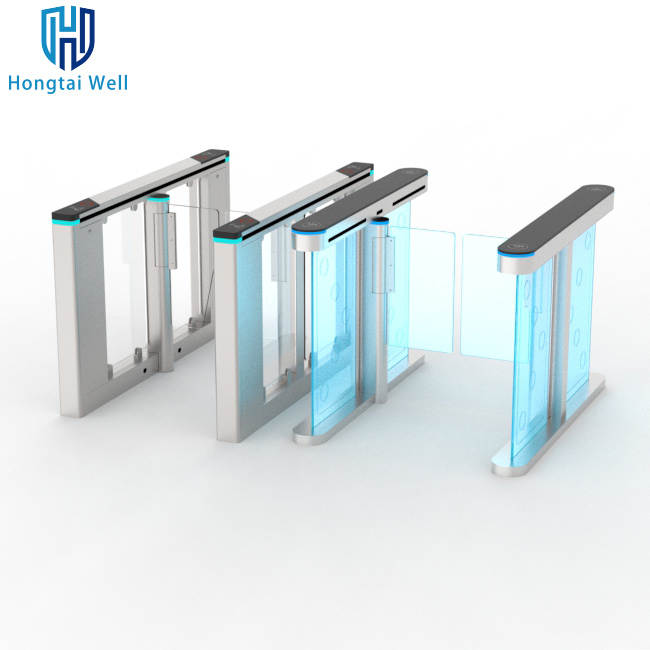

    0.5s 0.8s High Speed Flap Barrier Turnstile RFID Access Control Pedestrian Swing Gate

    Ask Lasest Price
    Brand Name : Hongtai Well
    Model Number : CW408
    Certification : CE UL
    Price : USD650~880 per piece
    Payment Terms : T/T
    Supply Ability : 1000 pieces weekly
    Delivery Time : 6-10 working days
    • Product Details
    • Company Profile

    0.5s 0.8s High Speed Flap Barrier Turnstile RFID Access Control Pedestrian Swing Gate

    0.5s 0.8s High Speed Gate Pedestrian Automatic RFID Access Control System Enrance Flap Barrier Swing Turnstile Gate


    Product features:


    1. Service life: 5 million times

    2. Opening speed: 0.3-0.8 seconds

    3. Swing arm height:925mm

    4. Channel width:550-800mm


    Specifications:


    Product ModelCW408

    Machine type


    Indoor/Outdoor

    Pendulum material

    Acrylic/tempered glass

    Number of infrared

    4 pairs/6 pairs

    Equipment size

    Length: 1400mm Width: 160mm Height: 1000mm

    Box material

    SUS304 1.2mm (body) + 1.5mm (upper cover)

    Other materials

    Side sealing plate 8mm tempered glass

    Equipment technology

    Wire drawing/grooving

    Block collision avoidance

    Can be automatically reset by any impact

    Run blocked

    Automatic return and forced closing can be selected at will

    Track detection

    Digital technology 360-degree monitoring

    Lock brake

    Electromagnetic clutch technology

    memory function

    With multiple people to quickly identify and pass

    Power off

    Super capacitor (optional)

    Channel width

    550-800mm

    motor

    Brushless DC motor

    Operating life

    3.5-5 million times

    Running speed

    Customize after 0.8s

    Side indicator light

    Have

    Top lightcustomized

    Technical Parameter
    Product modelCW408
    Power supplyAC220V±10%,50HZ±10% HZ
    Working environment temperature-25℃-70℃
    Relative humidity≤90%
    MotorBrushless motor
    Rate power40W
    Communication interfaceSwitch value(standard without include RS232,485)
    Number of passers30~40/min
    Infrared quantity7 pairs
    Normal service life5 million times
    Channel width size600mm~1000mm
    Swing material10mm Plexiglass
    ProductL 1400mm x W 160mm x H 1000 mm
    Chassis frameStandard 1.2~1.5mm 304 stainless steel
    Packing weightAbout 80 KG(single channel)






    FAQ

    1. How strong is your company?

    We have more than 200 employees, a 50-person R&D team, 2 factories, more than 60,000 square meters of workshops and office buildings, and 200 product patents.

    2. How do you do after-sales service?

    We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service

    3. How about the delivery time?

    It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

    4. How long is your warranty period?

    One-year warranty and lifetime technical support.

    5.What is your payment method?

    T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the products and packages.

    6.How do we install those revolving doors/barrier doors? Is it easy to do?

    Yes, it is really easy to install, and we have done most of the work before sending our product. You only need to fix the gate with screws and connect the power cord and network cable.

    7.Can you produce according to our size?

    We can provide customized services according to your detailed requirements, and we can also design unique gate products according to your actual site, and produce different sizes, software and functions.

    8.What is the warranty of the machine?

    Within one year, if there is any problem, we will provide accessories (but you pay the shipping cost)

    9.How does your factory control quality?

    Quality control in the whole process

    10.What is your MOQ?

    Any amount is acceptable.
